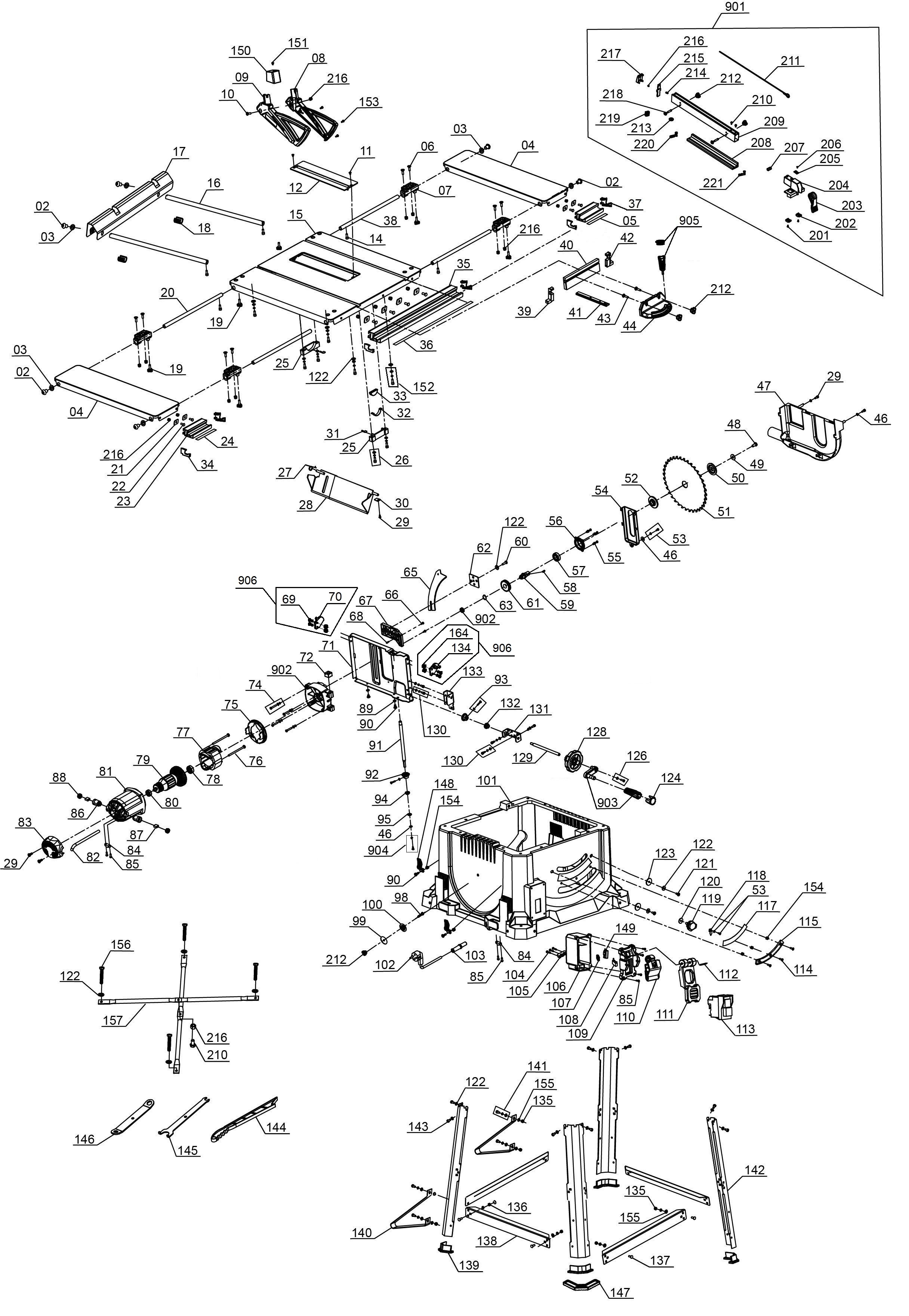

Find suitable spare parts or accessories to your Einhell products.
Table Saw
TC-TS 2225 U; EX; BR; 127V
Table Saw
TC-TS 2225 U; EX; BR; 127V
See more information
Show less information
Article description
The Einhell TC-TS 2225 U bench-type circular saw is a high-performance tool for performing precise and flexible work. The sturdy parallel stop with clamps on both sides enables longitudinal cuts to be performed, and for effortless angle cuts the angle stop or the tilting saw blade can be used. If a larger support surface is needed, there are pull-out side tables and a length extension at the back. The powerful motor is designed to handle major jobs as well, and it has an integrated soft start function for protecting both it and the fuses. Holders on the housing are practical features for holding the supplied stops and tools, the push stick and the power cable.
See more information
Show less information
Technical details
Mains supply
127 V | 60 Hz
Power
1800 W
Max. power (S6 | S6%)
2200 W | 25 %
Idle speed
4250 min^-1
Saw blade
254 mm x 30 mm
Number of saw teeth
48 Pieces
Swiveling range of saw blade
45 °
Max. cutting height at 45°
53 mm
Max. cutting height at 90°
80 mm
Height adjustment continuous
80 m
Diameter of suction adapter
36 mm
Working height
870 mm
Size of working table
580 mm x 555 mm
Table broadening left
580 mm x 150 mm
Table broadening right
580 mm x 150 mm
Table length extension back side
555 mm
